Tpa Diamant 4 Steam Generator

1 / 4
2 / 4
3 / 4
4 / 4
Technicial Specifications
  • Areas of Use 50 - 500 m² in the field
  • Power Supply 220 Volt
  • Power 2200 Watt
  • Solution Tank 4 Lt
  • Pressure Steam : 4.5 Bar / Water : 1.5 Bar
  • Steam Temperature 140-150 C
  • Heating up time, before use 8 min.
  • Machine Dimensions 555*1050*375 mm
  • Cable Length 4 mt
  • Weight 5 Kg
Product Description

Diamant is a professional steam generator equipped with a powerful and fast boiler, luminous controls, and a continuous charging system. To all this is added the zero volt handle, which allows you to operate the steam jet without any electric cable, ensuring maximum safety for the user. Thanks to the possibility of regulating the steam, this steam scrubber ensures effective sanitization of worktops, extractor hoods, floors, joints, oven, hob, sofas, chairs, glass, bathroom, and shower without the use of chemicals or aggressive detergents. The sanitizing force of the steam eliminates mites, germs, bacteria, and inactivates viruses. And it is precisely the regulation of steam, which is essential to adjust the power of the jet to all types of surfaces, which gives Diamant a wide versatility of use.


Main features


1. Zero Volt handle

The Zero Volt handle guarantees the highest degree of safety for the user thanks to a pneumatic air system. Eliminates the risk of contact with the current by canceling any type of electrical connection between the machine and your hand: uncompromising safety.

2. Body and boiler in AISI 304 stainless steel

AKR delivers steam at a temperature of 165 ° C, at a pressure of 6 Bar. The sanitizing power of the steam allows you to quickly and effectively clean stubborn dirt and multiple surfaces.

3. Removable electronic probe for limestone control

This patented probe is an excellent tool for a steam cleaner because it allows you to monitor the correct water level in continuously refilling boilers. It is also a valuable aid for checking the level of limescale within the system: simply unscrew it to remove limescale with ease, thus avoiding assistance costs.

4. Swivel wheels

DIAMANT can move freely thanks to 4 swivel wheels that allow 360 ° mobility.

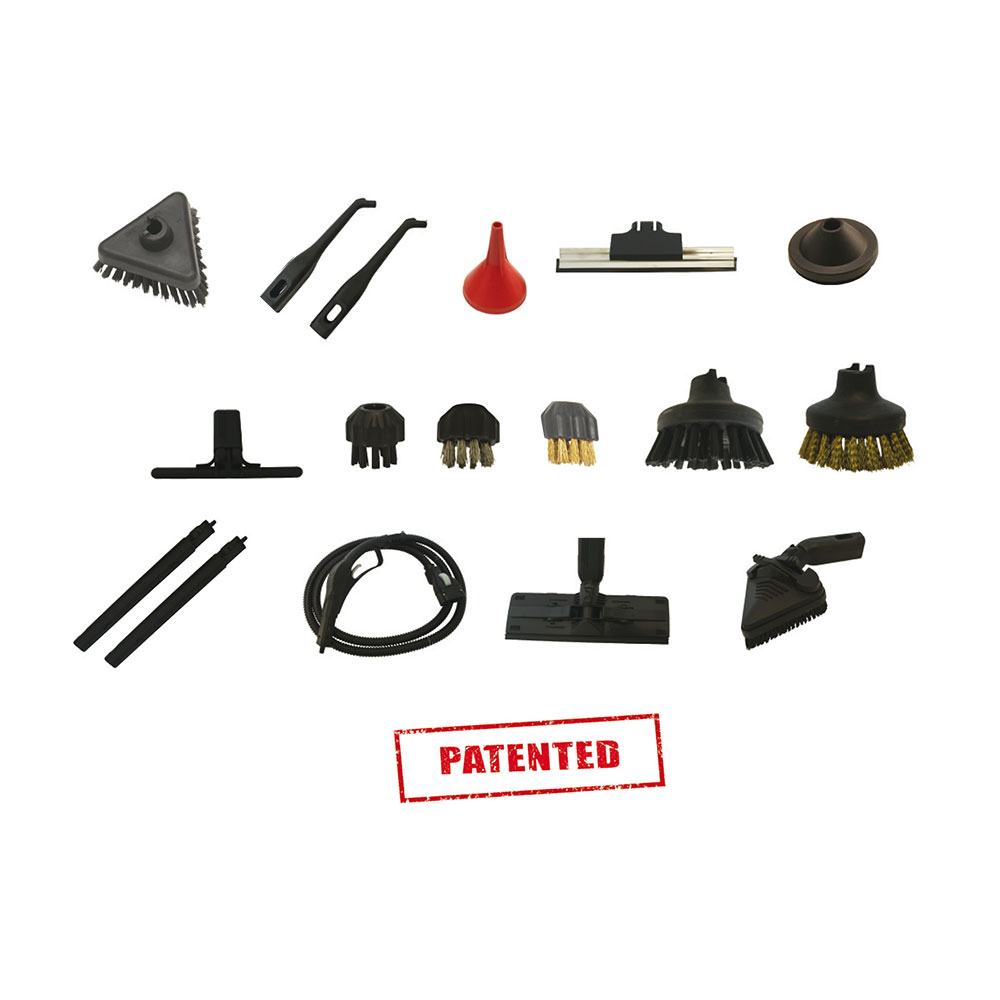

5. Practical patented accessories

The accessories of the Diamant model are patented and allow a very high level of performance in total safety, avoiding the transmission of heat to the hand of the end-user thanks to their particular internal structure which helps to dissipate the heat generated by the steam.

Green Cleaning: clean with 93% less water

This steam generator is only filled with tap water. It allows the operator not only to save on the cost of detergents but also to protect the environment by completely eliminating harmful substances. water consumption is reduced by about 93% when compared to traditional cleaning methods.
It is pure green cleaning.

Usage areas
  • Building and Facility Management Firms
  • Buildings & Sites
  • Car dealerships and Services
  • Educational Institutions
  • Factories
  • Food Production Facilities
  • Healthcare Facilities
  • Hotels and Restaurants
  • Municipalities & Government Agencies
  • Offices and Workplaces
  • Outdoor & Indoor Car Parks
  • Religious facilities
  • Shopping malls
  • Shops & Markets
  • Show Halls
  • Transportation facilities
  • Warehouses
Product Documents
