Fimap Fs 120 B Ride-On Sweeper ( Battery )

1 / 16
2 / 16
3 / 16
4 / 16
5 / 16
6 / 16
7 / 16
8 / 16
9 / 16
10 / 16
11 / 16
12 / 16
13 / 16
14 / 16
15 / 16
16 / 16
Technicial Specifications
  • Areas of Use 20000 - 35000 m² in the field
  • Working Width 1550 mm
  • Debris hopper capacity 600 Lt
  • Type of Dumping System Hydraulic / Automatic
  • Central Brush 1200 mm
  • Number of Side Brushes 1*500 mm
  • Power Supply 36 Volt
  • Forward Working Speed 8 km/h
  • Productivity Theoretical 10850 m²/h
  • Filter Surface Area 10 m²
  • Machine Dimensions 2330*1720*1510 mm
  • Weight 990 ( Without Battery )
Product Description

Comfort and power for perfect vacuuming

The FS100-120 sweeping machines have been designed to facilitate the collection of solid debris and light dust. They are available with central brushes of two different widths: 100 and 120 cm, and battery- or diesel-powered. The FS120 model is also available with a Bifuel endothermic engine, which allows the machine to be used with a more ecological fuel (LPG).
They are the best in the range in terms of performance, power, strength and adaptability to heavy duty tasks. A second side brush is available upon request.

They are suitable for cleaning large areas, up to 40,000 sq.m., with large amounts of dust and coarse residues from milling industries, mining, port areas, car parks and airports.

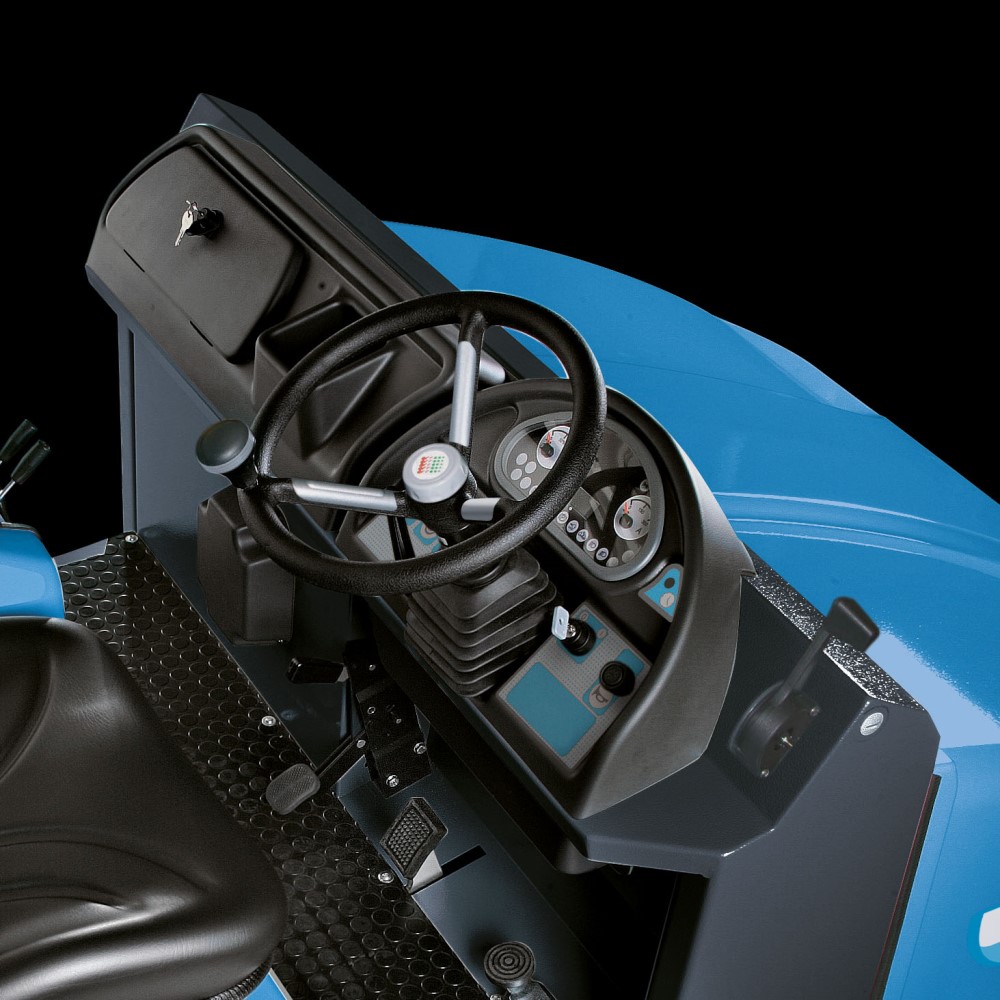

DRIVING COMFORT
The driver’s seat on the FS100-120 sweeping machines has been tailored to the operator, and is designed to render his/her work as comfortable as possible: the steering wheel can be tilted, along with the seat back and armrests

OPTIMIZES ENERGY CONSUMPTION
The optimized hydraulic system fully exploits the sweeping machine’s performance while using the least possible amount of oil. The system for maintaining the correct oil temperature (within the optimal values) increases performance yet minimizes energy consumption.
The combination of these two factors reduces energy consumption by 40%. This means improved machine autonomy – up to 5 hours – for battery versions.

OVERHEAD GUARD
It increases operator safety when working in storage and warehouse areas

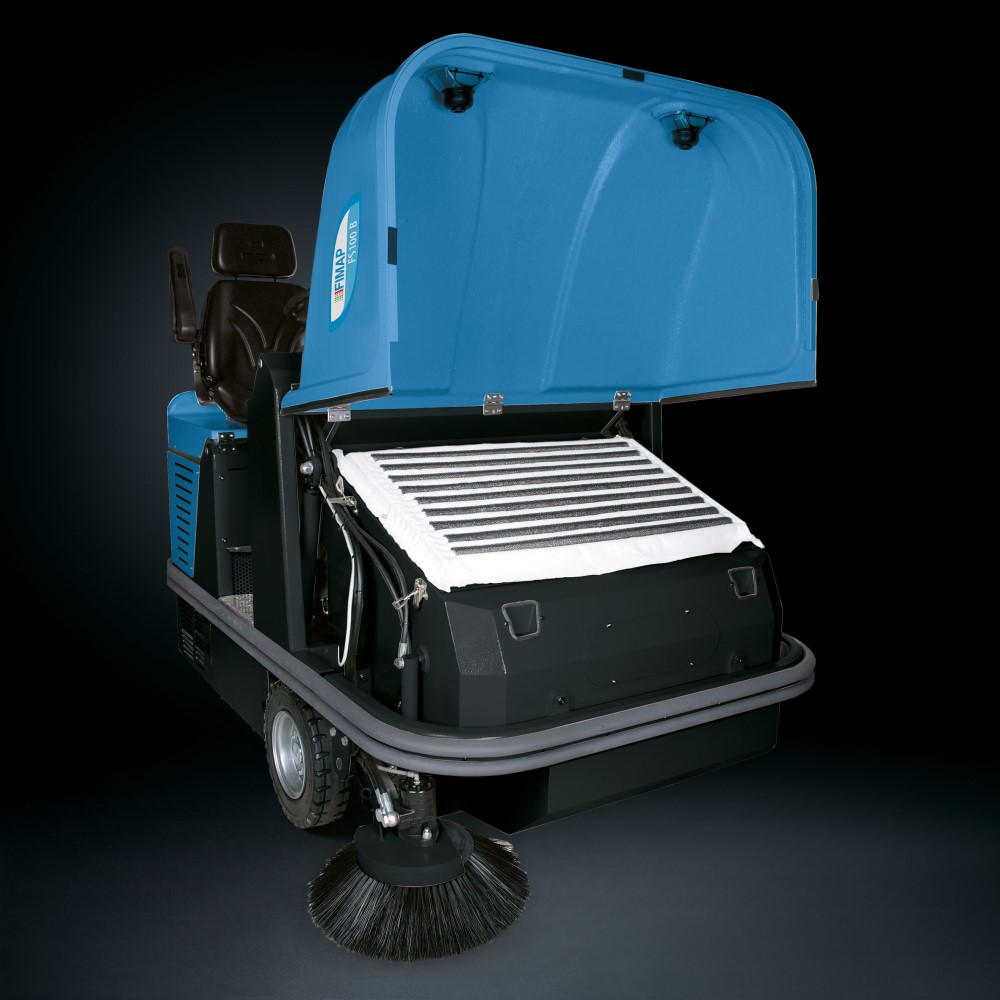

EFFECTIVE FILTRATION OF DUST
The fabric pocket filter, with its filtering surface area of over 10 sq.m., is long-lasting and offers excellent results, even in environments where large amounts of fine dusts are present. The filter is easy to remove, without using any tool, in order to be cleaned up.

Choose the most suitable version for your needs

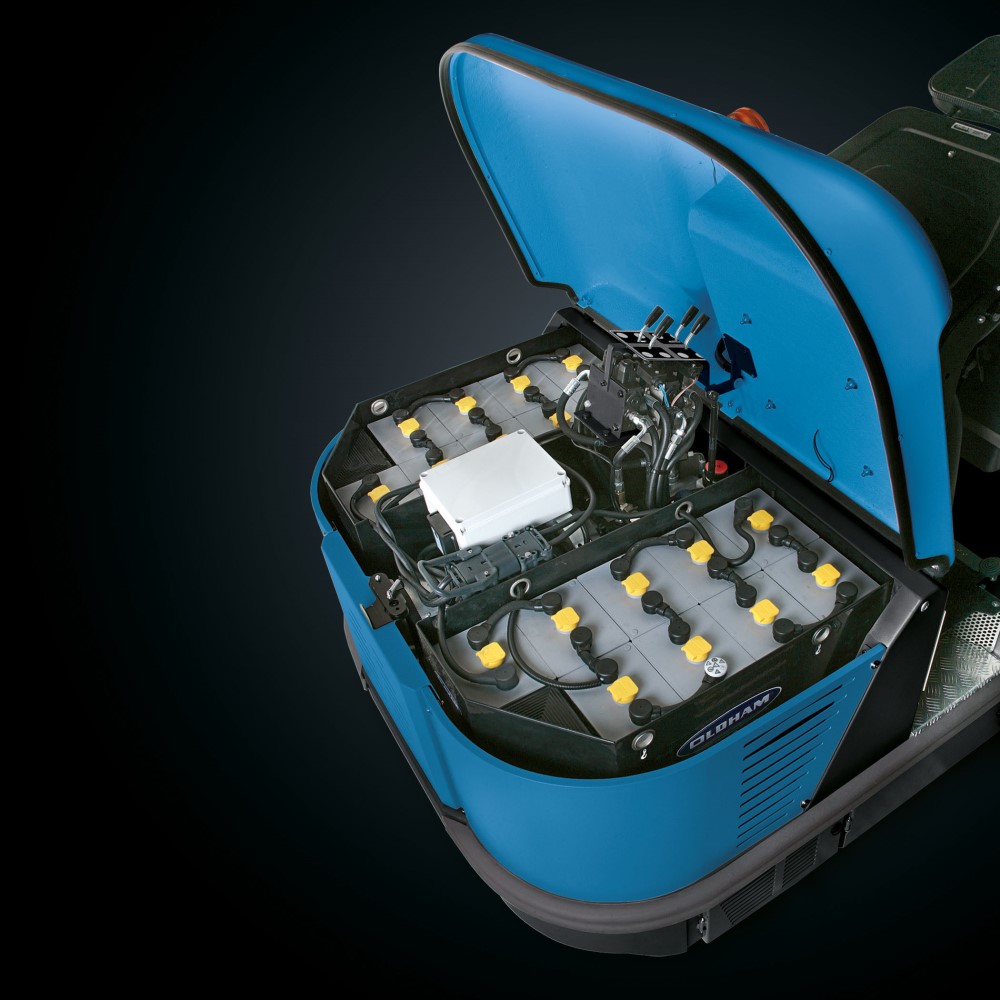

BATTERY VERSION
Available with 100 or 120 cm central brushDIESEL VERSION
Available with 100 or 120 cm central brush



Usage areas
  • Building and Facility Management Firms
  • Buildings & Sites
  • Car dealerships and Services
  • Educational Institutions
  • Factories
  • Food Production Facilities
  • Healthcare Facilities
  • Hotels and Restaurants
  • Municipalities & Government Agencies
  • Offices and Workplaces
  • Outdoor & Indoor Car Parks
  • Religious facilities
  • Shopping malls
  • Shops & Markets
  • Show Halls
  • Transportation facilities
  • Warehouses
