Technicial Specifications
  • Areas of Use 2000 - 8000 m² in the field
  • Working Width 1000 ( Side Brushes Included ) mm
  • Debris hopper capacity 65 Lt
  • Type of Dumping System Manuel
  • Central Brush 600 mm
  • Number of Side Brushes 2 Pcs. / 2*400 mm
  • Power Supply 24 Volt
  • Forward Working Speed 5.5 km/h
  • Productivity Theoretical 4500 m²/h
  • Filter Surface Area 3.2 m²
  • Sound Level 62 dB (A)
  • Traction Motor Power 300 Watt
  • Brush Motor Power Cylinder : 380 / Side : 90 Watt
  • Machine Dimensions 1450*1000*840 mm
  • Brush Rpm Cylinder : 550 / Side : 65 Rpm
  • Included Accessories Brushes, Battery , Charger
  • Weight 248 ( Battery included ) Kg
Product Description

Fimap reinvents the sweeping machine

With FSR Fimap presents a new way of designing the sweeping machine making it compact, versatile, eco-friendly and extremely productive with very low consumptions, also thanks to the production of the Hybrid version.
The ride on FSR sweeping machine is available in two versions, the FSR B which is battery powered, suitable for cleaning areas up to 8,000 sq.m. and the FSR Hybrid, powered by a combination of a gasoline engine with battery, suitable for cleaning floors up to 15,000 sq.m. With the hybrid version, the autonomy of the gasoline engine meets the clean energy of the battery power, doubling the operating autonomy.

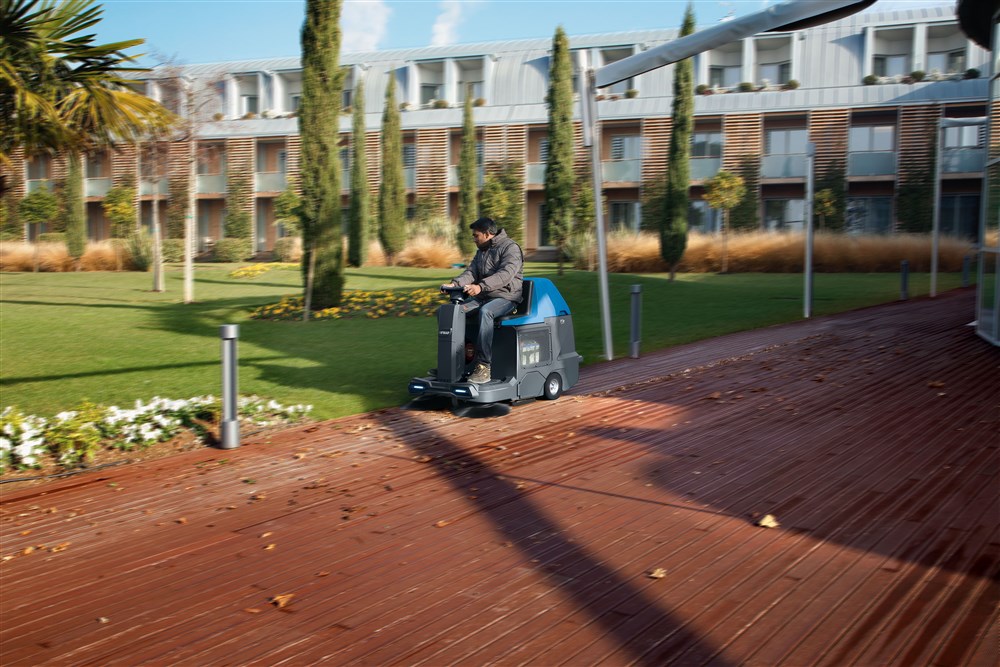

The reduced dimensions and easy handling make it perfect not only for outdoor spaces, but also cluttered interiors, such as in factories, warehouses, car parks or in the hospitality industry.

Designed for comfort, safety and visibility during use. FSR is suitable for small and cluttered areas, since it is compact, maneuverable and can easily go around obstacles.

Discover the FFM universe and experience the advantages of being constantly connected, with My.Machine app!

FFM is a fleet management system which collects the data sent by every machine and transforms them into valuable information that you can see on your smartphone or tablet, thanks to the My.Machine app.
You can check the position and health status of the machine at any time, along with the square meters cleaned and the consumption figures. In this way, the necessary evaluations can be made in order to offer customers the best, efficient service.

Emergency button that immediately stops the machine and all active functions in an emergency.

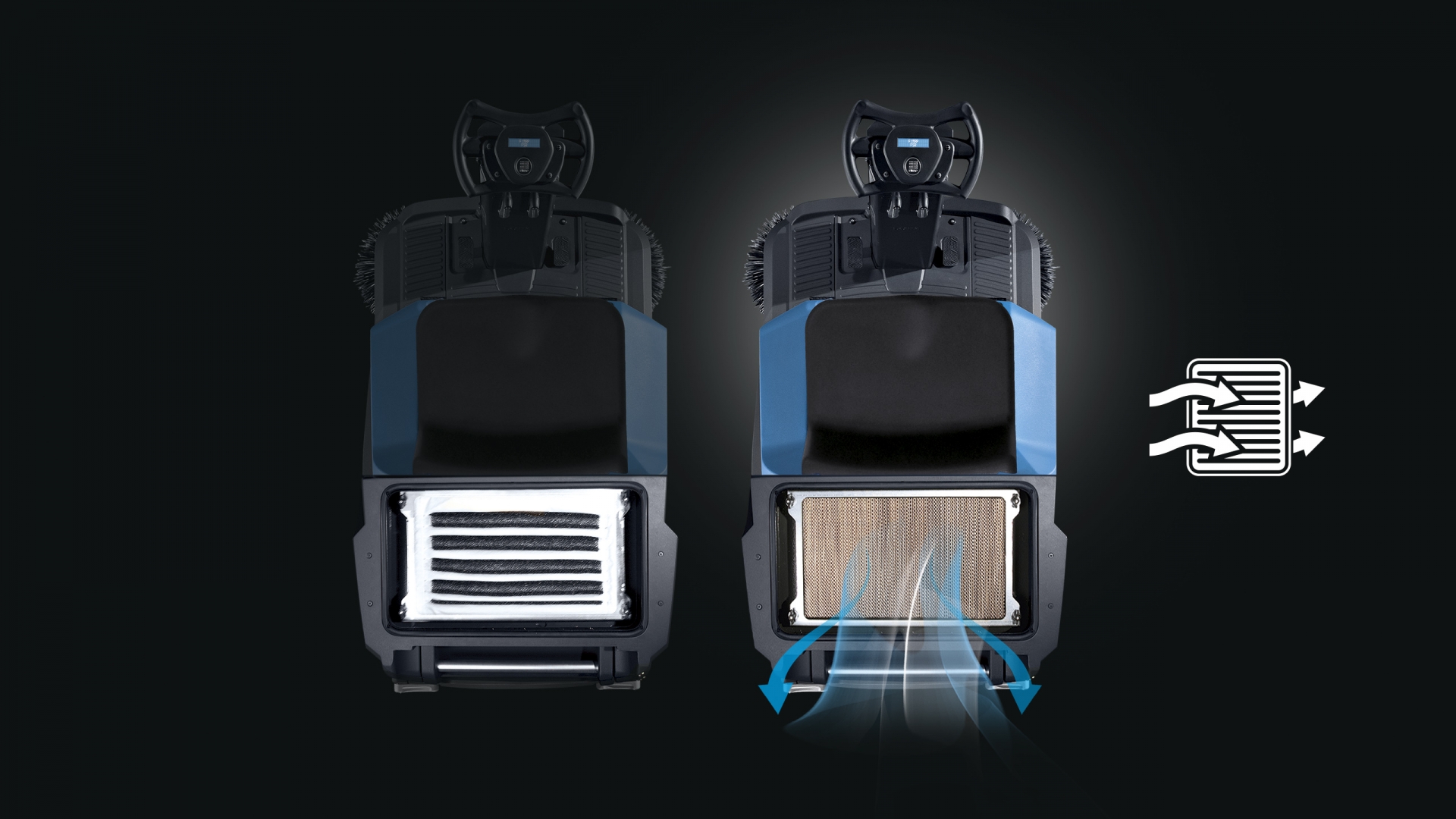

FSR is available with panel filter, for standard operations, or with fabric filter to achieve excellent filtering results also in environments with high presence of very fine dust.

It is silent and operates up to 4 hours non-stop

The dual fuel system allows the machine to be used both indoors and outdoors saving energy. The gasoline engine can be used for outdoor cleaning while the battery can be recharged for quiet indoor cleaning. An alternating work cycle guarantees an autonomy of up to 7.5 hours.

Steering wheel with integrated controls, designed to provide ergonomics and full control while driving without distractions. It makes the interaction with the machine comfortable and gratifying.

The autonomy of the gasoline engine meets the clean energy of the battery power, giving several advantages:
Up to 7.5 non-stop working hours
Very low consumptions and great autonomy: 40,000 sq.m. with a full tank of gasoline
More than 4 hours with zero emissions when electrically powered
Reduced by up to 69%
Dramatic time reduction for battery charge
Possibility to work indoors and outdoors with great versatility
High reliability
Low service costs

Usage areas
  • Building and Facility Management Firms
  • Buildings & Sites
  • Car dealerships and Services
  • Educational Institutions
  • Factories
  • Food Production Facilities
  • Healthcare Facilities
  • Hotels and Restaurants
  • Municipalities & Government Agencies
  • Offices and Workplaces
  • Outdoor & Indoor Car Parks
  • Religious facilities
  • Shopping malls
  • Shops & Markets
  • Show Halls
  • Transportation facilities
  • Warehouses
