Technicial Specifications
-
Areas of Use 4000 - 5100 m² in the field
-
Working Width 850 mm
-
Squeegee Width 900 mm
-
Solution Tank 110 Lt
-
Recovery Tank 110 Lt
-
Disc Brushes 2*385 + 1*260 mm
-
Power Supply 24 Volt
-
Suction Motor Power 410 Watt
-
Brush Motor Power 2*720 Watt
-
Weight 396 ( With Battery ) Kg
-
Forward Working Speed 8 km/h
-
Productivity Theoretical 4500 m²/h
-
Brush Rpm 140 Lt
-
Brush Pressure 35 Kg
-
Sound Level 62 dB (A)
-
Traction Motor Power 600 Watt
-
Machine Dimensions 1602*881*1242 mm
-
Included Accessories Brush, Battery , Charger
Product Description
Welcome to the dimension of cleaning 4.0!
MMg is an advanced, technological scrubbing machine that makes cleaning intelligent, interactive and easy. The most innovative solutions are used to get the best results and benefits in small and medium-sized spaces. The new design provides comfort and safety during use, and highlights the product quality.
It’s available with disc or cylindrical brushes, in both basic and Plus configurations (the latter are equipped with the innovative iD-intelligent Drive technology) and also the orbital version.
MMg perfectly reflects the principles of industry 4.0, with its combination of various innovations, smart design and connectivity. Thanks to FFM, MMg can communicate with you whenever you want. With the iD system, the operator can interact in a completely different way via a touch screen display. Everything is easy, user-friendly and fast, just like with a smartphone.
It’s versatile, able to work in any environment and in any condition such as in supermarkets, warehouses, shopping centers, production sites, swimming pools, gyms, car showrooms and workshops.
Are you looking for a solution to clean and sanitize at the same time?
Discover MMg Disinfector!
MMg DISC
Disc brushes are the most versatile type of brush head, that can adapt to any type of environment and surface. The addition of a side brush improves results along the walls and even underneath shelving units. The scrubbing machine with disc brushes can be used on any hard floor, easily removing even stubborn dirt thanks to the adjustable pressure up to 100 kg. The FWF – Fimap Water Flow technology guarantees an even distribution of the water on both brushes, ensuring uniform cleaning and avoiding any wastage of water and detergent. The side splash guards help to keep the water in the brush area to prevent splashes and ensure excellent drying.
MMg CYLINDRICAL
The cylindrical brush head consists of two counter-rotating cylindrical brushes that not only scrub but also make a light sweeping action. The sweeping action removes small, solid, non-adherent residue and collects it in a drawer installed at the rear of the brush head, which is removable for emptying. The addition of two side brushes improves results along the walls. This type of brush head is recommended for hard floors (even structured, uneven or non-slip). The bristles clean deep down, guaranteeing optimum results even where there are wide gaps. Given the high specific pressure and the notable rotation speed, it’s more suited to resistant floors not protected with a polymer film (wax). The counter-rotating movement keeps the detergent solution inside the scrubbing area, increasing efficacy yet ensuring low water consumption. The side splash guards help to keep the water in the brush area to prevent splashes and ensure excellent drying.
MMg ORBITAL
The brush head consists of a rectangular pad that oscillates crosswise in relation to the direction of machine movement. The orbital movement ensures excellent, uniform results across the entire surface as every point of the pad is in constant contact with the floor. This type of brush head is ideal when working on structured floors or those with wide gaps. The efficacy of the mechanical action, combined with the use of abrasive pads, minimizes the use of detergents, in particular the most aggressive ones rich in VOC (volatile components).
BASIC INSTRUMENT PANEL
A simple panel with a digital indicator showing the battery charge level and the working hours.
MECHANIZE SANITIZATION WITH THE DISINFECTOR VERSION OF MMG
In addition to carrying out the usual cleaning activity, the MMg scrubbing machine in the Disinfector version is able to sanitize environments by spraying a sanitizing solution through special nozzles located at the rear of the machine. MMg Cylindrical Disinfector performs up to 4 actions in one: it sweeps, scrubs, dries and sanitizes in one step.
READY TO TACKLE ANY ENVIRONMENT
The design is complemented to perfection by materials selected and used according to the most exacting standards, making a bold visual statement that expresses the essence and extraordinary quality of this machine. The entire outer structure is made from robust and sturdy polyethylene. The frame and brush head are made of aluminum for resistance to impact and corrosion.
THE ROUNDED DESIGN KEEPS THE VALUE OF YOUR INVESTMENT OVER TIME
A painstaking development and design process gave shape to a machine body that encompasses and protects all the mechanical parts of the machine, covering and shielding them against damage from accidental impact.

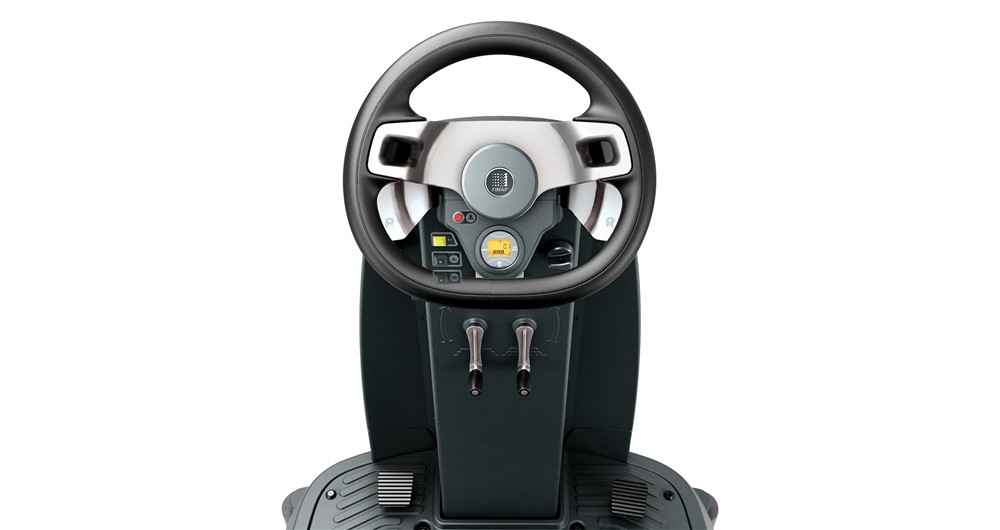

COMFORTABLE AND PRACTICAL DRIVING POSITION
The seat boasts ergonomic forms offering effective back support, and also features forwards and backwards adjustment. This equates to a stress-free experience for the operator, who can work for hours on end without any effort. The design of the front maximizes the room for the legs and brings the steering wheel closer to the operator, making the machine even more comfortable to use. The footrest zone is designed to offer impressive space for the feet, despite the compact dimensions of the machine.
TOUCH SCREEN DISPLAY FOR A REVOLUTIONARY USER EXPERIENCE
The tasks are entirely managed via a high definition color display that offers the same intuitive experience as a smartphone. The iD system offers a choice of customizable features to satisfy every requirement.
3-STAGE VACUUM MOTOR
A floor that’s immediately dry and safe to walk on is essential if you want to use the MMg scrubbing machine during the opening hours of a supermarket or shopping center, for example, when people are present. The 3-stage vacuum motor guarantees that the floor is dry and safe at the first pass, reducing the risk of slipping.
ACTIVE TECHNOLOGIES TO PREVENT ACCIDENTS
ANTI-COLLISION SYSTEM
The anti-collision system sensors detect any possible obstacles when reversing. An alarm is sounded to warn the operator of the presence of an obstacle so that he/she is aware and can protect the machine, avoid damage to furnishings or equipment in an industrial context, and avoid harm to people if the machine is being used in hypermarkets or shopping centers during opening hours.
FFM – FIMAP FLEET MANAGEMENT
Enter the FFM world via the My.Machine app and discover the advantages of being constantly connected!
FFM (Fimap Fleet Management) aims to improve machine management for customers, even when more than one machine has been purchased as part of a fleet. With the My.Machine app, you can see the FFM data at any time, check the health status of your machine and know where it is, if it’s being used as indicated and whether there are any malfunctions. Directly checking the conditions of use prevents unpleasant surprises or unexpected expense, reducing the costs of ownership.
ECO MODE
Eco Mode is a quiet work configuration with low consumption. For frequent or maintenance cleaning, i.e. when enhanced scrubbing power isn’t required, it guarantees sustainable operations by reducing the use of water, detergent and energy.
The low noise level allows the MMg scrubbing machine to be used even during the opening hours of large supermarkets and shopping centers, without disturbing the people around.
START&STOP
When the machine stops temporarily, the brush motors, vacuum*, traction and water flow will turn off automatically, reducing consumption, costs and emissions. All the functions are reactivated automatically as soon as the operator touches the accelerator again.
* In the basic versions, it stops with the manual lifting of the squeegee.
DISINFECTOR VERSION
Choose MMg Disinfector, to clean and sanitize environments in one step. You’ll make environments safer and then you can keep track of the sanitization interventions with FFM – Fimap Fleet Management.
