Technicial Specifications
-
Areas of Use 8000 - 20000 m² in the field
-
Working Width 1370 ( With Side Brush ) mm
-
Squeegee Width 1266 mm
-
Solution Tank 275 Lt
-
Recovery Tank 334 Lt
-
Cylindrical Brushes 2 pcs. / 210*1000 mm
-
Number of Side Brushes 2*450 mm
-
Power Supply 36 Volt
-
Brush Motor Power 2*1000 Watt
-
Suction Motor Power 650 Watt
-
Weight 1075 ( With Battery ) Kg
-
Forward Working Speed 7 km/h
-
Productivity Theoretical 8850 m²/h
-
Brush Rpm 525 Rpm
-
Traction Motor Power 1500 Watt
-
Machine Dimensions 2160*1677*1340 mm
-
Debris hopper capacity 40 Lt
-
Included Accessories Brush, Battery, Charger
Product Description
Robust and powerful, ideal for cleaning industrial environments

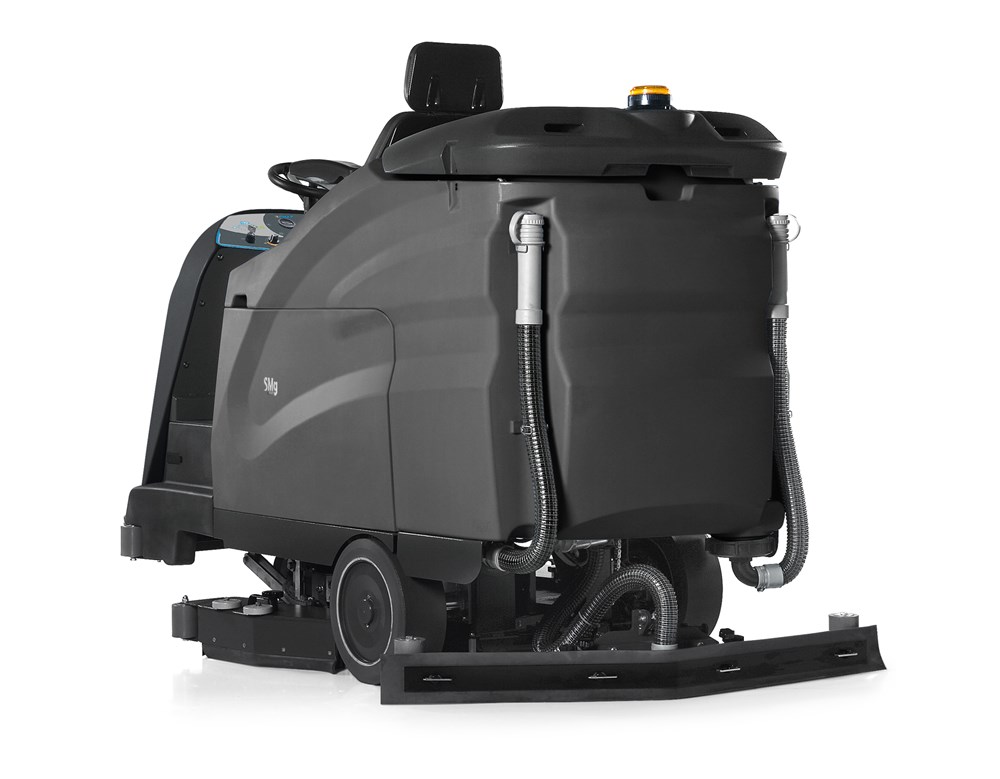

SMg is a highly productive scrubbing machine with a robust design conceived for use in large industrial areas.

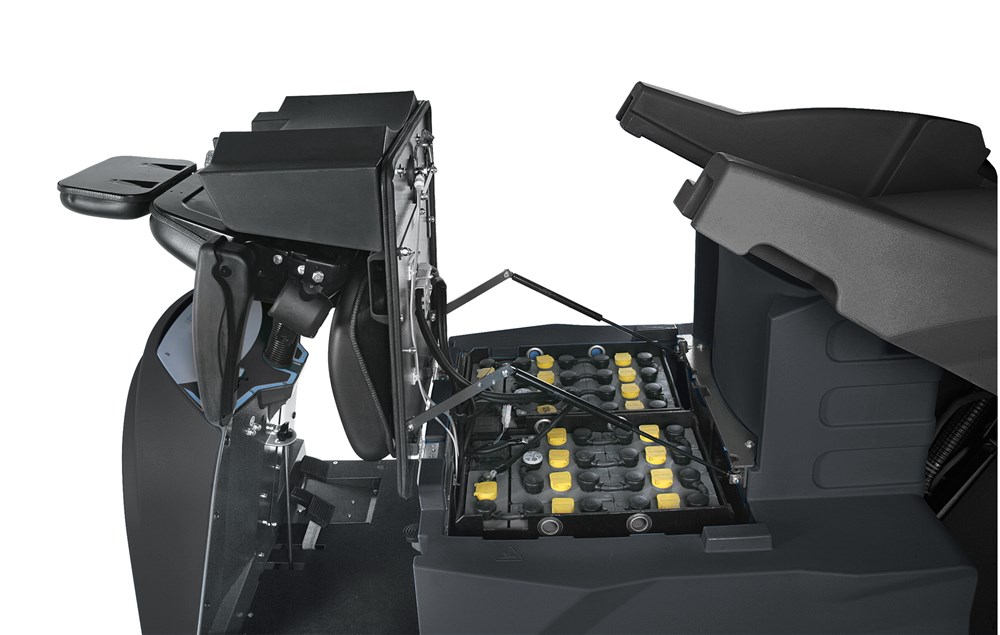

The comfortable driving position offering clear visibility, and a very simple instrument panel, are aspects that emphasize safety and the operator’s control over the cleaning tasks. Driving comfort and solutions for increasing working autonomy, such as the large capacity of the tanks and the technologies for saving resources, that allow you to take full advantage of a battery that lasts up to 4 hours.
It is available in the scrubbing version with two disc brushes with a working width of 120 cm, and a scrubbing-sweeping version with two cylindrical brushes and two side disc brushes with a working width of 137 cm.

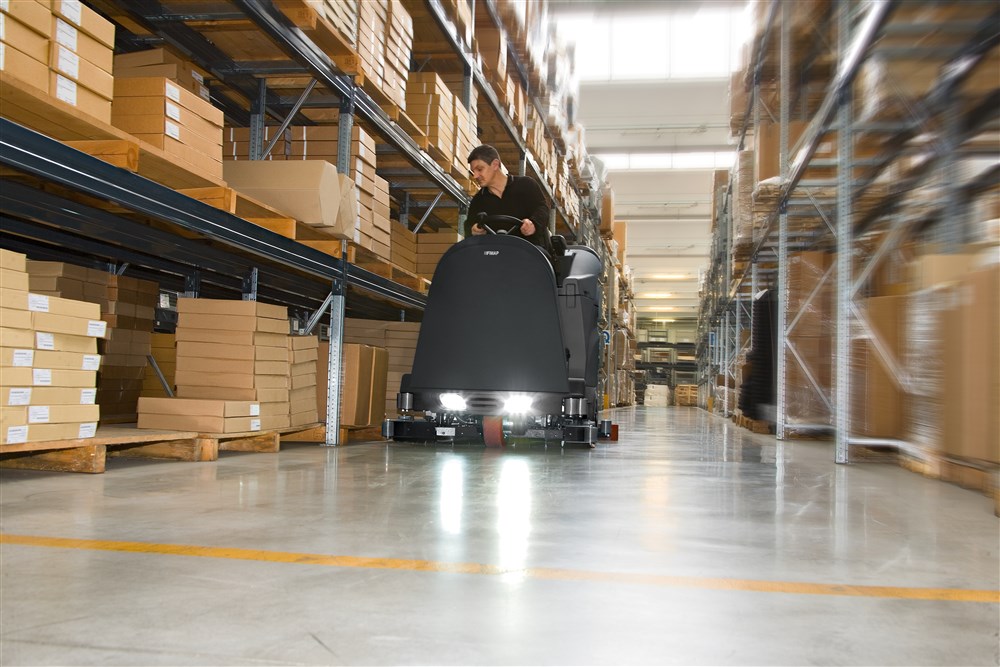

Ideal for the maintenance and heavy duty cleaning of surfaces up to 20,000 sq.m. in industrial environments, logistics centers, stations and airports.
SMg DISC
Disc brushes are the most versatile type of brush head, that can adapt to any type of environment and surface. The SMg120 scrubbing machine is available with two disc brushes or two pad holders. The FWF – Fimap Water Flow technology guarantees an even distribution of the water on both brushes, ensuring uniform cleaning and avoiding any wastage of water and detergent. The side splash guards help to keep the water in the brush area to prevent splashes and ensure excellent drying.
SMg CYLINDRICAL
The cylindrical brush head consists of two counter-rotating cylindrical brushes that not only scrub but also make a light sweeping action. Small, solid, non-adherent residue is collected in a drawer installed at the rear of the brush head, which can easily be removed for emptying. This type of brush head is recommended for hard floors (even structured, uneven or non-slip). The counter-rotating movement keeps the detergent solution inside the scrubbing area, increasing efficacy yet ensuring low water consumption. The side splash guards help to keep the water in the brush area to prevent splashes and ensure excellent drying.
DESIGNED FOR LARGE SPACES
The SMg design perfectly combines the need for a comfortable driving position when working long shifts with the need for solutions that improve productivity in large spaces: big tanks, access from both sides, LED headlights, maneuverability and full visibility.
WORK WITH THE SIMPLICITY OF SMG

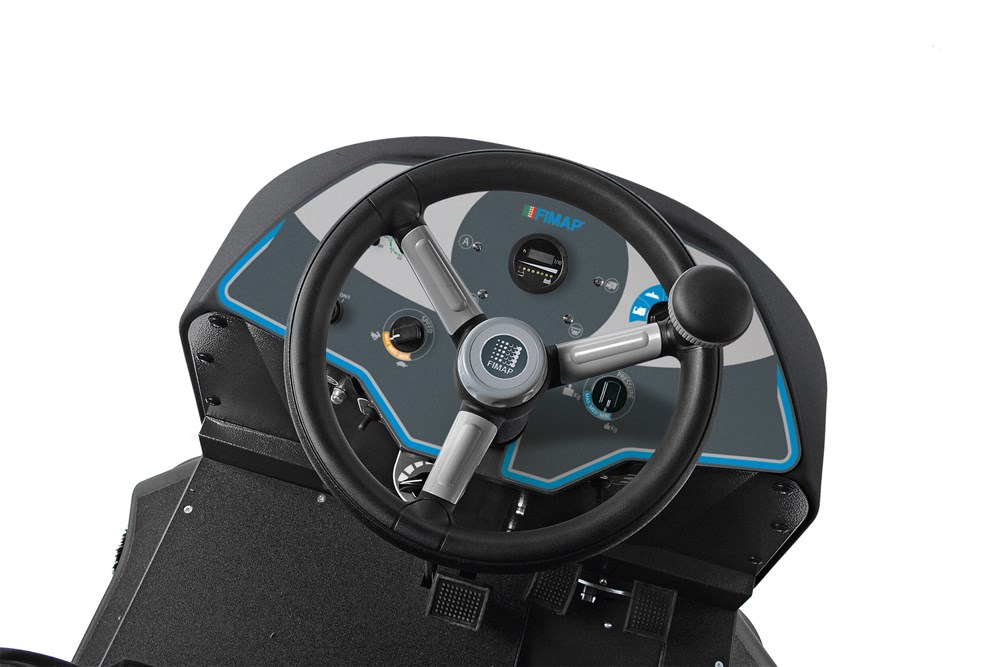

Thanks to the development of a driver-friendly instrument panel with all the controls to hand, there’s no need for specific operator training. Simplified use thanks to the working program selector that allows to choose from four pre-set operating modes.
UNBEATABLE PERFORMANCE WITH THE FRONT MOTORWHEEL
The SMg is equipped with a next generation motorwheel for high-speed yet safe scrubbing operations, thanks to the antiskid wheel.

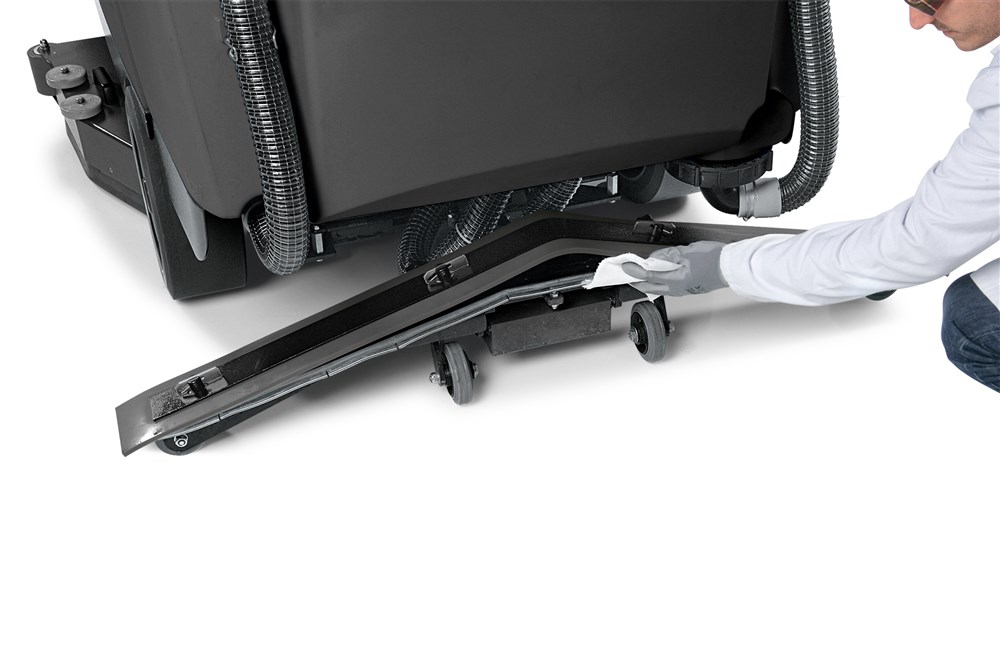

PERFECT DRYING AT THE FIRST PASS
The use of a dual vacuum motor ensures optimal drying results, even under the most extreme conditions.
SEAT BELTS
The seat belts guarantee peace of mind when working in any environment.
FES – FIMAP ENERGY SAVER
The installation of a series of innovative components, such as the motorwheel with advanced electronic control and the new Eco ON/OFF system that stops the water flow and brush movement when the machine isn’t operating, have permitted a reduction in energy consumption of up to 30%, thus resulting in a major increase in productivity.
Usage areas
- Building and Facility Management Firms
- Buildings & Sites
- Car dealerships and Services
- Educational Institutions
- Factories
- Food Production Facilities
- Healthcare Facilities
- Hotels and Restaurants
- Municipalities & Government Agencies
- Offices and Workplaces
- Outdoor & Indoor Car Parks
- Religious facilities
- Shopping malls
- Shops & Markets
- Show Halls
- Transportation facilities
- Warehouses
